Filezilla FTP server installation steps on Windows 10

1. Download from https://filezilla-project.org/download.php?type=server

2. Double click downloaded executable file to install such as figure 1



(Figure 1)

3.set default value as follow figures

(Figure 2)

(Figure 3)



(Figure 4)

4. set default value for administrator remote control port or what you would like port

(Figure 5)

5. Go on to set default value for enable daemon with booting

(Figure 6)















(Figure 7)



6. Build a administrator password not involve with client user as Figure8









(Figure 8)

7. BTW,  FTP server is listening for connection, you have to add client user next step.

(Figure 9)

(Figure 10)

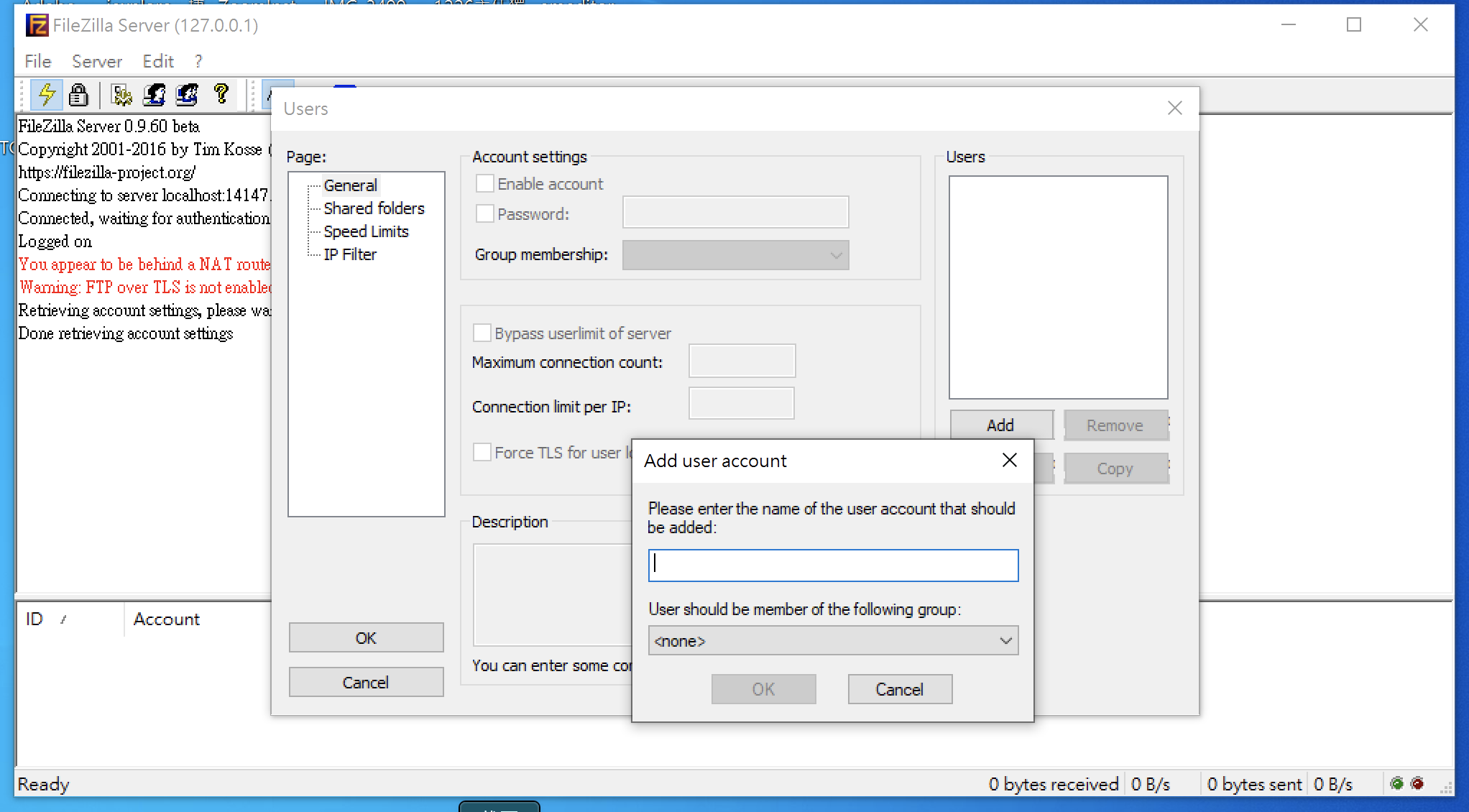

8. Click icon of user adding and type user name and passwords in general option as Figure 11

(Figure 11)

 9.Select share folder to the user in shared folder option



(Figure 12)

10.  Configure speed limitation for upload and download













(Figure 13)



11. Restrict Remote Login IP from  Internet or Intranet for network security in IP filter option as Figure 14

(Figure 14)

12. Enable windows firewall to permit Filezilla Ｓerver app.

  a.Open Control panel -> System and security -> Windows Defender Firewall. (Figure 15)

  b. Choosing permit app to pass through Windows Defender Firewall on left column of window(Figure 16)

  c. Click modify setting and click permit other apps(Figure 17)

  d. Click browse and select C:\Program Files(x86)\Filezilla Server\Filezilla Server.exe as Figure 18-19, and then click add

(Figure 15)

(Figure 16)

(Figure 17)

(Figure 18)

(Figure 19)

13. If you want to modify server IP and port, choose Edit  -> Setting from Top tabs of main window as Figure 15 and select from General Setting as Figure 16

(Figure 20)

(Figure 21)
